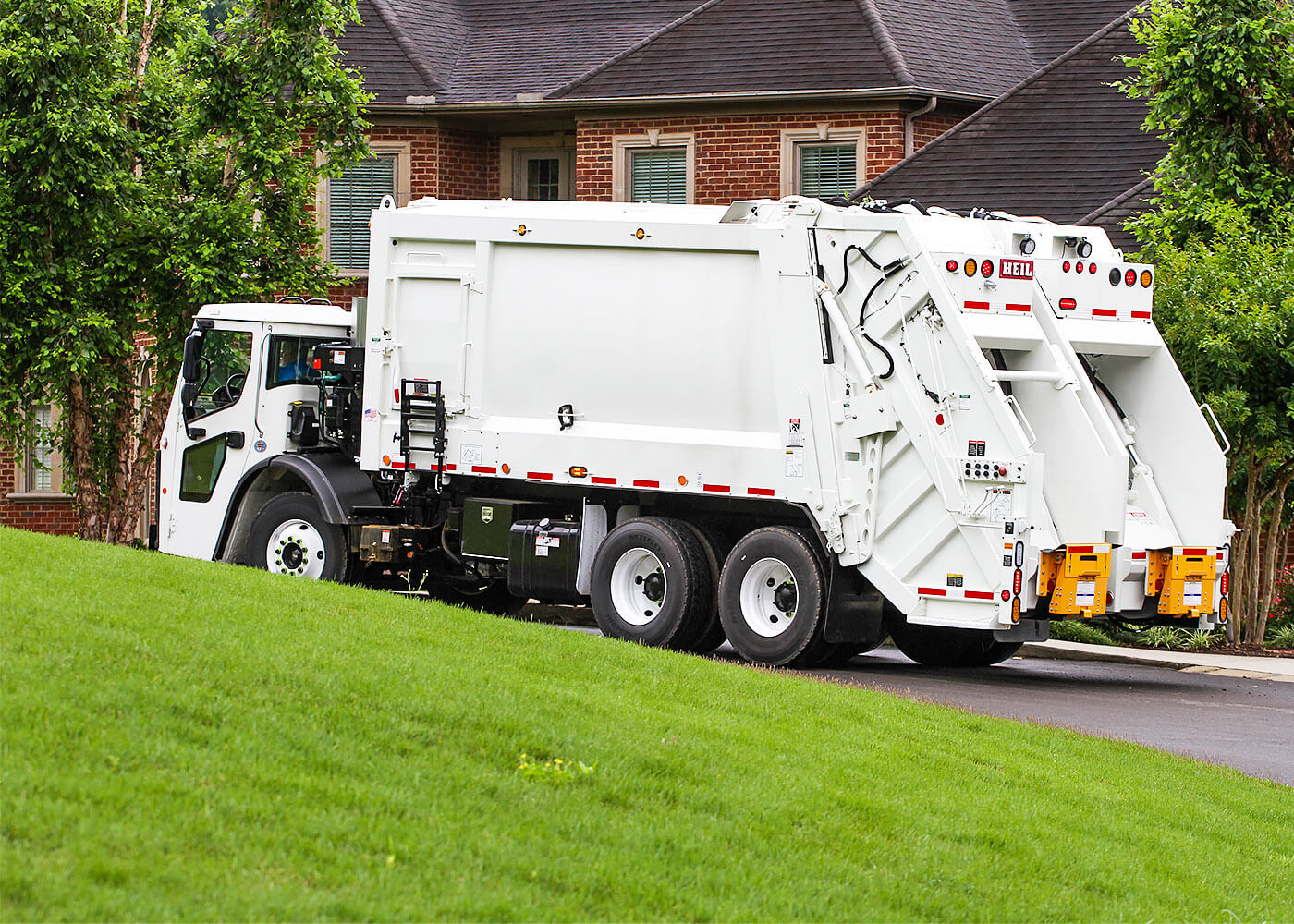

The Bi-LINE systems has been installed on KERBSIDER refuse vehicles to provide secured access for operatives carrying out maintenance access on the roof mounted hydraulic and electrical equipment. The Bi-LINE installation generally comprises of a traveling Dual Lanyard attached to two restraint Lines. One line is located along the outer edge of the articulated roof, the other is located along the opposite side of the articulated roof, adjacent to the flat roof area. The Dual Lanyard is attached to these restraint lines via sliding Shuttles that allow the operative access to the full length and width of the vehicle.
The operative wears a comfortable padded Bi-LINE Work Positioning Belt with a simple snap fix buckle and friction adjusted webbing strap. The ‘stowed’ lanyard location is identified by and access sticker on the side of the vehicle. The operative would locate the access ladder / platform adjacent to this sticker. At waist height to the vehicle roof, the operative can reach the lanyard and release it from the stowage anchor. The Lanyard is then used as a third point of contact and restraint so the operative can pull themselves onto the roof area. In the middle of the Lanyard is a Safety Swivel Hook trapped between two Stoppers, the hook is immediately connected to a sliding D Shackle on the operative’s belt. The length of the lanyard from its attachment to the restraint line to the hook is less than the width of the vehicle

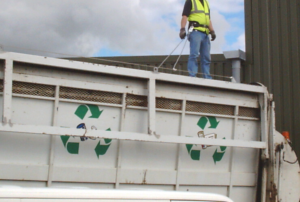

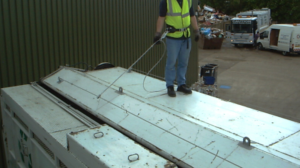

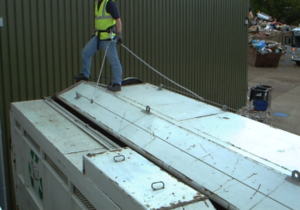

Once connected, the operative has hands free access to all of the main body, the lanyard simply slides along the restraint line as the operative progresses along the roof area. The length of the lanyard from its attachment to the restraint line to the hook is less than the width of the vehicle preventing falls from the sides. Stoppers fitted to the restraint lines limit the access at the end of the vehicle.
